Precision bearings.Built for drone flight.

RHD supplies precision bearings for drone and UAV motors, from high-speed FPV platforms to industrial, agricultural, VTOL and heavy-lift propulsion.

Discuss your bearing requirementExplore UAV applications

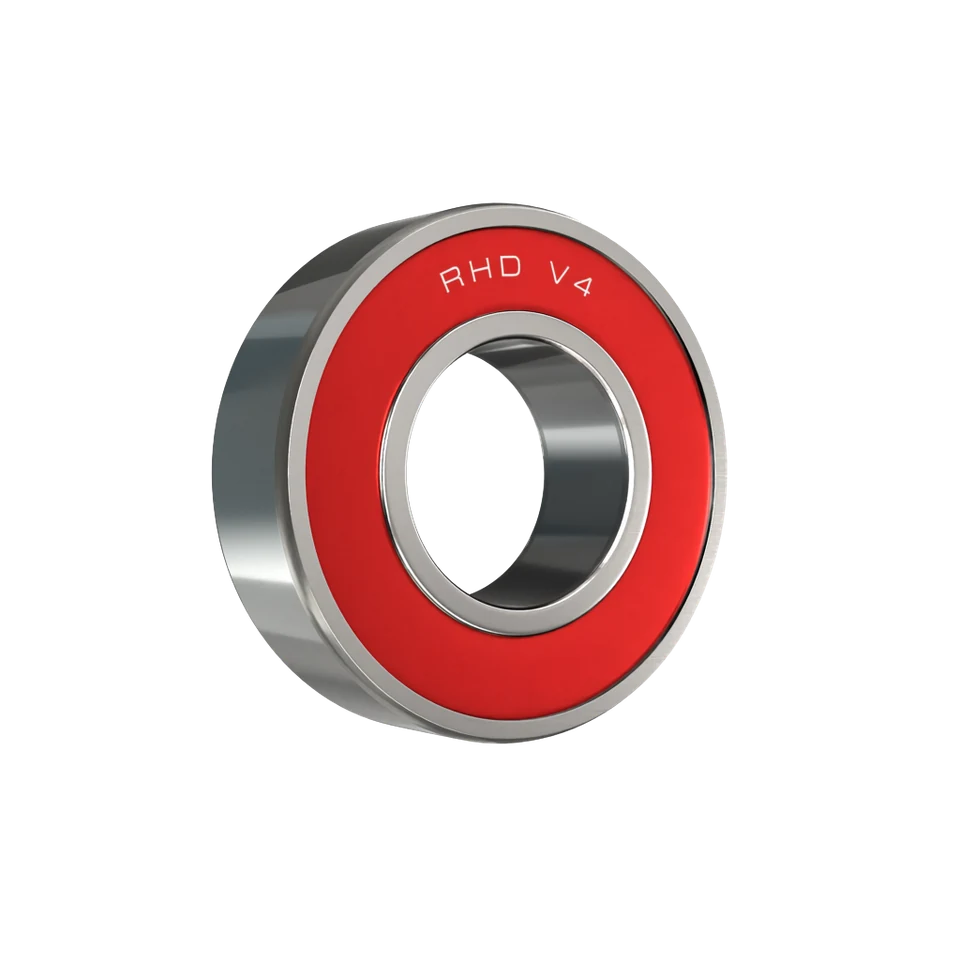

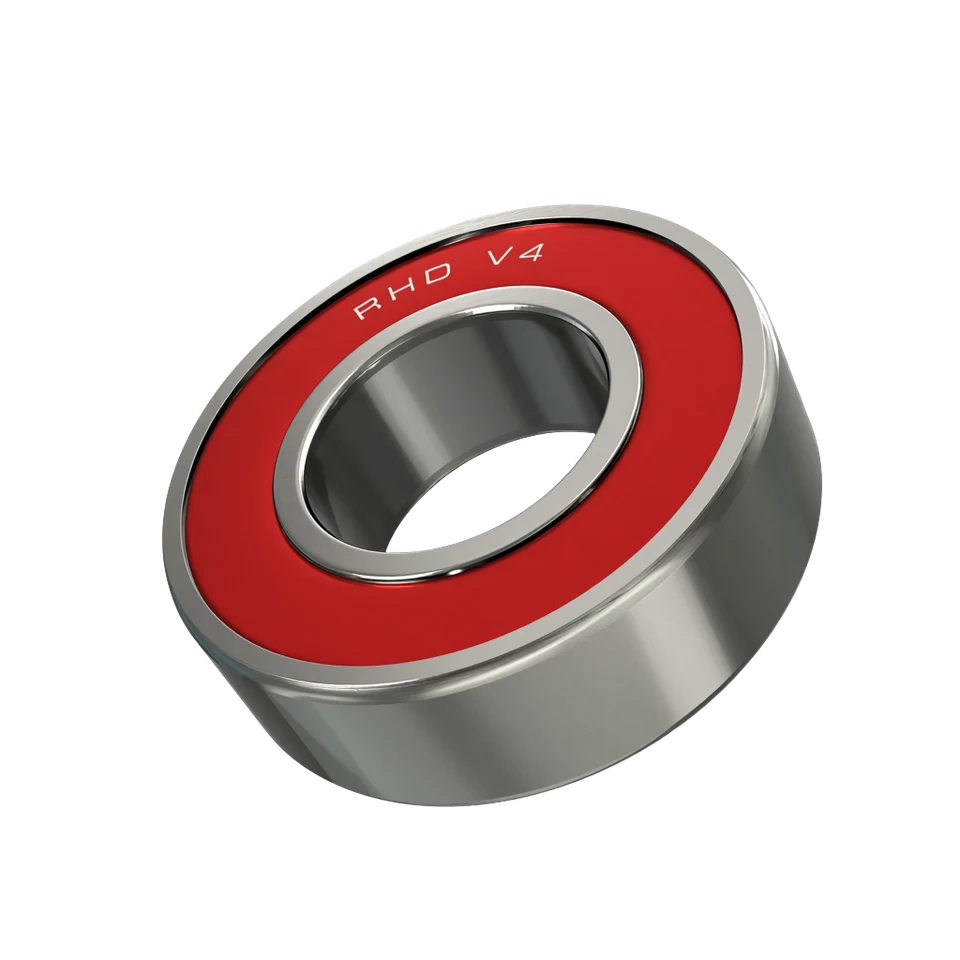

Z4 / V4Vibration / noise gradeP5Running accuracyC3 / MC3Internal clearance

01 / 17Seventeen UAV categories, from micro FPV to extreme heavy lift.

17UAV application categories
16application records with a published bearing series
Micro → Heavypropulsion and operating-speed range

UAV bearing application matrix

Match the bearing
to the UAV
architecture.

Compare source-linked motor examples, bearing series and operating speeds across seventeen UAV categories.

References identify published motor fitments only. They do not represent a complete aircraft bearing list, quantity, RHD supply relationship or OEM affiliation.

UAV category → application → bearing → operating speed
Illustration of a micro FPV tiny-whoop racing drone in an indoor technical course

01Micro & compact

Extreme-speed micro architectureManufacturer theoretical value

Micro FPV / Tiny Whoop

Published motor bearing seriesMiniature high-speed ball-bearing system
Indoor FPV racingTiny-whoopAggressive freestyleUltra-light propulsion
Published motor reference
BetaFPV Air65 II; 0702 2026 motors, up to 36,000 KV on 1S
Operating-speed range
Ultra-high-speed class — theoretical no-load speed can exceed 100,000 RPM; loaded speed depends on propeller and duty cycle
Evidence type
Manufacturer theoretical value
Applications
Indoor FPV racing, technical-course racing, ultra-light freestyle and lower-KV cinematic freestyle.

Source interpretation. BetaFPV publishes ball-bearing construction and a 1.0 mm shaft but no bearing series. Proposed 684 ZZ, 694 ZZ and MR114 ZZ bearings use a 4 mm bore and are incompatible.

BetaFPV 0702 motorsBetaFPV Air65 II684 ZZ dimensions694 ZZ / MR114 ZZ dimensions
Illustration of a five-inch FPV racing multirotor banking through a high-speed course

02Micro & compact

High-agility racing propulsionApplication estimate

5-inch FPV / Racing Multirotor

Published motor bearing series684 ZZ / MR84 ZZ
FPV racingRapid accelerationHigh-agility flight5-inch X4
Published motor reference
T-Hobby / LIGPOWER F50 2207, 2150/2200 KV, 6S, 5-inch X4
Operating-speed range
Estimated application range — approximately 25,000–40,000 RPM for comparable loaded 5-inch FPV configurations
Evidence type
Application estimate
Applications
Competitive 5-inch FPV racing, high-agility flight, rapid acceleration, sharp cornering and freestyle.

Source interpretation. F50 product specifications publish 684 ZZ / MR84 ZZ. Final suitability depends on the selected motor and duty cycle.

LIGPOWER F50T-Hobby F50
Illustration of a lightweight fixed-wing electric UAV flying above surveyed terrain

03Micro & compact

Compact fixed-wing propulsionCalculated no-load value

Small Fixed-Wing / Lightweight Electric Aircraft

Published motor bearing series684 ZZ
Lightweight fixed-wingIndoor F3PAerobatic aircraftCompact electric propulsion
Published motor reference
T-Motor / T-Hobby AS2303, 1500/1800/2300 KV, 2–3S
Operating-speed range
Calculated no-load speed is approximately 29,000 RPM at 2300 KV / 3S; loaded speed is lower
Evidence type
Calculated no-load value
Applications
Lightweight fixed-wing, indoor F3P and aerobatic aircraft.

Source interpretation. AS2303 specifications publish 684 ZZ. The RPM figure is a no-load calculation, not a bearing speed limit.

LIGPOWER AS2303
Illustration of a professional cinematic X8 drone carrying a stabilized camera payload

04Micro & compact

Stable, camera-first propulsionManufacturer loaded test

Cinematic / Professional Multirotor

Published motor bearing series686 ZZ
Aerial cinematographyCinelifterHeavy camera payloadStable imaging
Published motor reference
T-Motor Cine77
Operating-speed range
Manufacturer-published test data reaches approximately 17,000 RPM in the referenced configuration
Evidence type
Manufacturer loaded test
Applications
Professional aerial cinematography, stable filming, heavy-camera payload flight, cinewhoop, cinelifter and X8-style multirotor platforms.

Source interpretation. Cine77 specifications publish 686 ZZ and motor test data for this propulsion architecture.

LIGPOWER Cine77
Illustration of an industrial mapping drone performing a topographic survey mission

05Professional UAV

Mapping and survey propulsionApplication estimate

Industrial / Mapping / Survey UAV

Published motor bearing series685 ZZ + 695 ZZ
MappingSurveyingPhotogrammetryInfrastructure inspection
Published motor reference
MAD 4012 EEE
Operating-speed range
Estimated application range is approximately 5,000–20,000 RPM, depending on the selected motor and propeller
Evidence type
Application estimate
Applications
Mapping, surveying, photogrammetry, infrastructure inspection, industrial payloads, professional imaging, agricultural spraying and crop monitoring.

Source interpretation. The referenced MAD 4012 EEE specification publishes 685 ZZ + 695 ZZ for this propulsion class.

MAD 4012 EEE
Illustration of a medium industrial drone carrying a professional inspection payload

06Professional UAV

20–22 inch professional systemsNo comparable RPM value published

Medium Industrial / Cargo / Mapping / Inspection UAV

Published motor bearing series626 ZZ
CargoTethered UAVMappingInspectionAerial photography
Published motor reference
T-Motor MN605-S
Operating-speed range
Model-dependent; confirm operating speed from the selected KV, voltage and 20–22-inch propeller test data
Evidence type
No comparable RPM value published
Applications
Cargo, tethered observation, mapping, inspection and aerial photography across multirotor, VTOL and fixed-wing architectures.

Source interpretation. MN605-S specifications publish 626 ZZ. Operating speed depends on the selected KV and propeller.

T-Motor MN605-S
Illustration of a medium cargo UAV operating over industrial infrastructure

07Professional UAV

Harsh-environment professional UAVManufacturer loaded test

Medium Cargo / Mapping / Inspection UAV

Published motor bearing series608 ZZ
CargoUtility inspectionTethered missionsPhotogrammetry
Published motor reference
T-Motor MN705-S, 125/140/260 KV variants
Operating-speed range
Manufacturer-published loaded test points span approximately 4,000–13,500 RPM, depending on KV and propeller
Evidence type
Manufacturer loaded test
Applications
Cargo, tethered missions, photogrammetry, utility inspection and professional imaging across multirotor, VTOL and fixed-wing platforms.

Source interpretation. MN705-S specifications publish 608 ZZ and model-dependent motor test data.

T-Motor MN705-S
Illustration of a medium professional multirotor carrying a stabilized survey camera

08Professional UAV

Medium professional propulsionNo comparable RPM value published

Medium Professional Multirotor / Fixed-Wing / VTOL

Published motor bearing series686 ZZ + 696 ZZ
MultirotorFixed-wingVTOLCommercial imaging
Published motor reference
T-Motor MN4112 / MN4116
Operating-speed range
Model-dependent; the referenced 300–450 KV motor family includes 15–18-inch propeller recommendations
Evidence type
No comparable RPM value published
Applications
Multirotor, fixed-wing and VTOL propulsion for mapping, survey, inspection and commercial imaging platforms.

Source interpretation. MN4112 and MN4116 specifications publish 686 ZZ + 696 ZZ with platform recommendations.

T-Motor MN4112T-Motor MN4116
Illustration of a large professional multirotor carrying a LiDAR survey payload

09Professional UAV

Large propeller, higher payloadManufacturer loaded test

Large Professional Multirotor

Published motor bearing series6901 ZZ
LiDAR carriageIndustrial surveyCinematographyHeavy payload
Published motor reference
T-Motor MN8017, 120 KV / 12S
Operating-speed range
Manufacturer-published loaded test points span 1,846–4,268 RPM, depending on propeller and throttle
Evidence type
Manufacturer loaded test
Applications
Industrial survey, LiDAR and camera payloads, large cinematography rigs and moderate heavy-payload operations.

Source interpretation. MN8017 specifications publish 6901 ZZ and loaded motor test points.

T-Motor MN8017
Illustration of a 15 to 17 kilogram fixed-wing UAV in long-endurance flight

10Industrial / VTOL

Long-endurance fixed-wing cruiseManufacturer loaded test

Fixed-Wing 15–17 kg Class

Published motor bearing series6800 + 6900 ZZ
Fixed-wing cruiseFolding propeller15–17 kg aircraftElectric propulsion
Published motor reference
T-Motor AX525-A, 250 KV / 12S
Operating-speed range
Manufacturer-published loaded test points span 3,842–8,583 RPM with the referenced propeller
Evidence type
Manufacturer loaded test
Applications
15–17 kg fixed-wing cruise and folding-prop propulsion.

Source interpretation. The AX525-A specification lists 6800 / 6900 ZZ and loaded motor test points.

T-Motor AX525-A
Illustration of a heavy cargo and inspection UAV approaching industrial infrastructure

11Industrial / VTOL

Security, cargo and persistent operationsManufacturer loaded test

Heavy Cargo / Inspection UAV

Published motor bearing series6902 ZZ
Security observationLight logisticsInspectionPersistent tether
Published motor reference
T-Motor MN1010
Operating-speed range
Manufacturer-published loaded test points span 1,345–4,587 RPM, depending on KV and throttle
Evidence type
Manufacturer loaded test
Applications
Mapping, utility inspection, security observation, light cargo, tethered operations and aerial photography across multirotor, VTOL and fixed-wing platforms.

Source interpretation. MN1010 specifications publish 6902 ZZ and model-dependent loaded motor test points.

T-Motor MN1010
Illustration of a heavy industrial multirotor lifting a dense sensor payload

12Industrial / VTOL

Long flight with heavy payloadsManufacturer loaded test

Heavy Industrial Multirotor

Published motor bearing series6902 ZZ
Heavy sensor payloadLarge-area mappingIndustrial inspectionMedium-heavy logistics
Published motor reference
T-Motor MN1015, 70 KV, 34–36-inch propellers
Operating-speed range
Manufacturer-published loaded test points span 2,170–4,137 RPM
Evidence type
Manufacturer loaded test
Applications
Long-endurance heavy-payload flight, cargo, tethered operations, large-area mapping and industrial inspection.

Source interpretation. MN1015 specifications publish 6902 ZZ and loaded motor test points.

T-Motor MN1015
Illustration of a large hybrid VTOL aircraft performing a precision vertical lift

13Industrial / VTOL

Vertical lift, efficient cruiseManufacturer loaded test

Large VTOL

Published motor bearing series6202 ZZ
Aerial logisticsEmergency responseSurvey photographyHybrid VTOL
Published motor reference
LIGPOWER / T-Motor V10 KV160
Operating-speed range
Manufacturer-published loaded test points span 2,512–5,539 RPM, depending on propeller and throttle
Evidence type
Manufacturer loaded test
Applications
Industrial VTOL propulsion for aerial logistics, emergency response, agricultural spraying, aerial surveying, photography and inspection.

Source interpretation. V10 specifications publish 6202 ZZ. Mission examples also draw from LIGPOWER V-series guidance.

LIGPOWER V10
Illustration of an agricultural plant-protection drone spraying crops at low altitude

14Industrial / VTOL

Low RPM, high load, harsh environmentManufacturer loaded test

Agricultural / Plant-Protection UAV

Published motor bearing series6001
Crop sprayingPlant protectionPrecision agricultureOrchard / forestry
Published motor reference
Hobbywing X9 Plus agricultural propulsion system
Operating-speed range
Manufacturer-published laboratory test points span 1,675–3,973 RPM in the referenced agricultural configuration
Evidence type
Manufacturer loaded test
Applications
Plant protection, crop spraying and approximately 20 L four-rotor agricultural aircraft, including orchard, forestry and large-area spraying.

Source interpretation. Hobbywing publishes a 6001 bearing system for the X9 Plus.

Hobbywing X9 Plus
Illustration of a heavy emergency-response drone supporting a firefighting operation

15Heavy & extreme lift

Persistent and emergency-response liftManufacturer theoretical value

Industrial / Firefighting / Tethered Heavy UAV

Published motor bearing series608 ZZ
FirefightingRescue supportTethered observationIndustrial lift
Published motor reference
MAD M7C15 IPE V2.0
Operating-speed range
Low–Medium — manufacturer tables publish 1,862–7,723 RPM across 140/220 KV variants, with the values qualified as theoretical
Evidence type
Manufacturer theoretical value
Applications
Heavy multirotor, firefighting, rescue, tethered and industrial payload platforms.

Source interpretation. The current M7C15 IPE V2.0 page specifies 608 ZZ. Its RPM table values are labelled theoretical.

MAD M7C15 IPE
Illustration of a very-heavy-lift cargo drone transporting an emergency supply pod

16Heavy & extreme lift

Logistics, emergency supply, bulk sprayingManufacturer loaded test

Very Heavy Lift / Cargo

Published motor bearing series6902 ZZ
Heavy logisticsEmergency supplyBulk sprayingVery heavy transport
Published motor reference
T-Motor MN1118 / MN1130
Operating-speed range
Manufacturer-published loaded test points span approximately 1,521–3,869 RPM across the referenced motor family
Evidence type
Manufacturer loaded test
Applications
Heavy-lift logistics, emergency supply, firefighting support, agricultural spraying and industrial payload transport across quad, hex, octo and coaxial multirotors.

Source interpretation. MN1118 and MN1130 specifications publish 6902 ZZ and model-dependent loaded motor test points.

T-Motor MN1118T-Motor MN1130
Illustration of an extreme-heavy-lift multirotor carrying a large industrial cargo frame

17Heavy & extreme lift

Load, rigidity and service lifeManufacturer loaded test

Extreme Heavy-Lift

Published motor bearing series6004 ZZ
Extreme industrial liftFire rescueHigh-capacity sprayingVery large cargo
Published motor reference
T-Motor MN1325 KV47, 24S
Operating-speed range
Manufacturer-published loaded test points span 1,480–3,177 RPM across 40–100% throttle
Evidence type
Manufacturer loaded test
Applications
Heavy-lift logistics, emergency supply, agricultural spraying and industrial payload transport across 4, 6, 8-rotor and coaxial platforms.

Source interpretation. MN1325 specifications publish 6004 ZZ and loaded motor test points.

T-Motor MN1325

India UAV market

India's UAV
ecosystem is expanding.

UAV motors require bearings selected for speed, load, fit, clearance, lubrication and operating environment. RHD supports Indian manufacturers with application-matched bearing supply.

01

38,575registered drones

India’s regulated UAV ecosystem

As of 9 February 2026, India recorded 38,575 registered drones, 39,890 Remote Pilot Certificates and 244 approved training organisations.

Government source: registered drones
02

2025Orvakal project

Integrated drone hub development

On 14 November 2025, a foundation stone was laid at Orvakal for a manufacturing, testing, certification, research and training hub.

Government source: Orvakal drone hub
03

2026Haryana project

Manufacturing and training cluster

Haryana announced the Drone Manufacturing and Training Project at Sisai in May 2026, covering manufacturing, components, testing, pilot and technician training, and repair.

Government source: Haryana drone project

UAV bearing specification

Select for the
operating conditions.

RHD imports and distributes miniature and standard deep-groove ball bearings for UAV motor applications. Motor RPM is not a bearing speed rating: suitability must be validated for the series, size, load, lubrication, clearance, fit, temperature and duty cycle.

RHD V4 bearing range

Low-vibration bearings for UAV motors.

Series, internal clearance, lubricant and closures are matched to the motor design and operating conditions.

RHD V4 bearing in an upright three-quarter viewRHD V4 bearing in a low three-quarter view
Vibration / noise
Z4 · V4

Low-vibration and low-noise grades are available where specified, subject to an agreed inspection method.

Running precision
P5

P5 tolerance options are available on selected series for applications requiring tighter dimensional and running accuracy.

Application tuning
C3 / MC3

Internal clearance, lubricant, closure, fits and temperature are selected as one specification.

Specification sequence

Define the application before selecting the bearing.

  1. 01UAV mission
  2. 02Motor / actuator
  3. 03Shaft + housing
  4. 04Bearing arrangement
  5. 05Validated specification
01

Miniature / high-speed

693 ZZ · 684 ZZ · MR115 ZZ · 685 ZZ · 695 ZZ · 626 ZZ · 686 ZZ · 696 ZZ

Precision, clearance, lubricant selection, low vibration, dynamic balance and heat.

02

Professional UAV

608 ZZ · 6800 · 6900 ZZ · 6901 ZZ

Endurance, payload consistency, harsh environments and repeat production supply.

03

Agriculture / VTOL / heavy

6001 · 6902 ZZ · 6202 ZZ · 6004 ZZ

Load, rigidity, contamination control, corrosion, thermal management and service life.

04

Special / very heavy

6205 ZZ · 6817 ZZ · 61822 ZZ

Bearing selection for heavy UAV and eVTOL propulsion architectures.

Selection note. Bearing speed capability depends on size, internal design, lubrication, load, fit and temperature. Published motor RPM is not a bearing speed rating.

Share Inquiry on Email

UAV bearing enquiry

Send your UAVbearing requirement.

Share the UAV application, target speed, loads, shaft and housing fits, temperature, duty cycle and annual requirement. RHD will review the bearing specification and available supply options.

Illustration of a large hybrid VTOL aircraft in flight
RHD V4 bearing
Direct engineering chatDiscuss on WhatsAppShare Inquiry on Emailsales@rhdenterprise.inCall RHD Bearings+91 97020 81858
